Everyday EDC

Mini wallet

Three cards slide out with it.

You carry 4.0 mm instead of 12.8 mm. The rest of your cards stay in the main wallet.

Holds
3 cards, 1 of them RFID
Size
94.0 × 57.0 × 4.0 mm

Two ways to carry

Everyday, or out for a run.

Everyday
The whole wallet: main pocket and mini wallet
Out for a run
Just the mini wallet: 3 cards

Inside

Built in layers.

Anodized aluminum, held together by 8 screws.

Top frame
RFID window
Mini wallet
3 cards, RFID clips
Rails
12 magnets
Spacer layers
1.13-1.14 mm each
Back plate
2.27 mm

Main pocket

Add or remove layers to fit what you carry.

Spacer layers, 1.13-1.14 mm each, set the depth of the main pocket.

Size

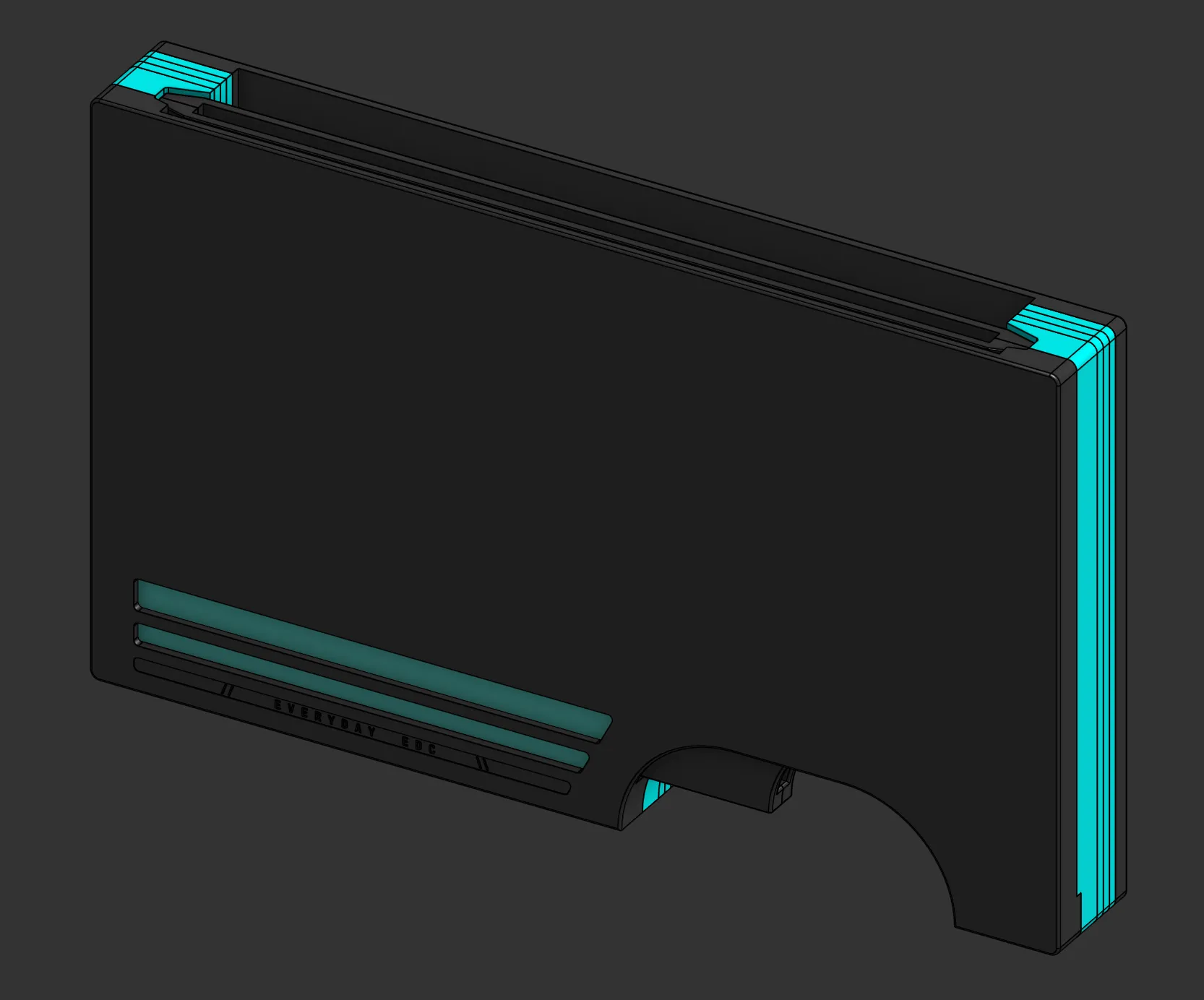

  • Onshape CAD of the Slide Wallet: the front with its RFID windows and engraving, the cyan spacer layers along the edge.

    Whole wallet

    104.6 × 62.7 × 12.8 mm

    Everyday: main pocket and mini wallet

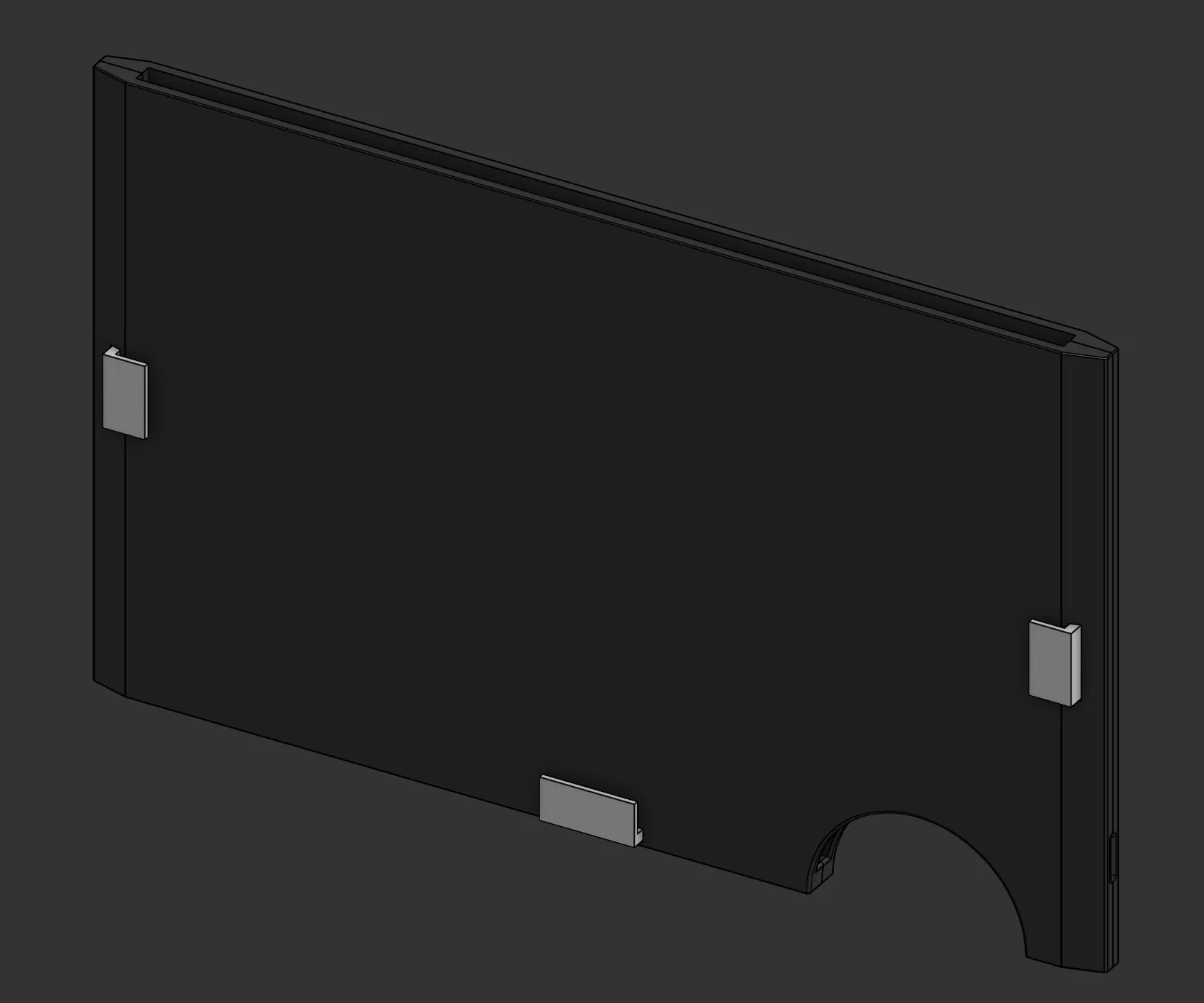

  • Onshape CAD of the mini wallet, with its three card clips.

    Mini wallet

    94.0 × 57.0 × 4.0 mm

    Out for a run: 3 cards

  • Bank card

    85.6 × 54.0 × 0.76 mm

    For scale

Top and side views, all drawn to the same scale. The pictures are the Onshape CAD.

Details

  • RFID window

    0.2 mm strip

    A thin strip covers openings in the aluminum front, so the RFID card in the mini wallet works without taking it out.

  • Magnets

    12 × Ø3 mm

    Twelve magnets along the bottom rail hold the mini wallet in until you slide it out.

  • Main pocket

    3 spacer layers

    Spacer layers set how much the main pocket holds. Add or remove them to fit what you carry.

  • Material

    Aluminum

    The body is aluminum, and so are the cyan rails and spacer layers, which are anodized.

Specifications

Dimensions

Length
104.6 mm4.118 in
Width
62.7 mm2.469 in
Thickness
12.8 mm0.504 in
Corners
R1.0 mm
Thumb cutout
R12.0 mm
Mini wallet
94.0 × 57.0 × 4.0 mmtwo 2.0 mm halves; R10.0 mm notch

Capacity

Mini wallet
3 cardsincluding 1 RFID card, held by 3 clips
Main pocket
Adjustableadd or remove spacer layers
Spacer layers
3 × 1.13-1.14 mm1.14 + 1.13 + 1.13 = 3.41 mm; each layer in 2 pieces

Build

Parts
17 + magnets + 8 screws
Plates
2.27 mm + 4.10 mmback plate; front frame with the RFID windows
RFID window
0.2 mm stripcovers openings in the front frame
Magnets
12 × Ø3 × 1 mmin the bottom rail; hold the mini wallet in
Fasteners
8 screwsØ2.2 mm holes through the back plate and layers, Ø1.65 mm in the front frame
Material
Aluminumbody, rails and spacer layers; the cyan parts anodized
CAD
Onshape

Questions

Does the RFID card work while it's in the wallet?

Yes. It sits in clips in the mini wallet, behind a thin strip that covers openings in the aluminum front, so the signal gets through.

What holds the mini wallet in?

Twelve magnets along the bottom rail.

How many cards does the main pocket hold?

It's adjustable: three spacer layers, 1.13-1.14 mm each, set its depth. Add or remove them to fit what you carry.

What is it made of?

Anodized aluminum, except the thin strip over the RFID window.

How it's made

  1. Modeled

    Onshape

    18 parts, from the rails to the RFID strip.

  2. Prototyped

    3D printed

    Printed from the Onshape parts.

  3. Rendered

    Blender

    Cycles, 24 fps.

The engineering process behind the Everyday EDC wallets, from requirements to prototypes and measured tolerances, is on the MagWallet page.
